TN vs. IPS – A Comprehensive Comparison

When it comes to choosing the right display technology, TN (Twisted Nematic) and IPS (In-Plane Switching) are two of the most widely used LCD technologies. Each has its unique strengths and weaknesses, making them suitable for different applications. This blog will explore the fundamentals of TN and IPS displays, their applications, and a detailed comparison to help you make an informed decision.

Understanding How LCDs Work

Liquid Crystal Displays (LCDs) rely on the properties of liquid crystals to control the passage of light. These crystals are sandwiched between two polarized glass layers and can be manipulated by applying an electric field. Depending on the alignment of the liquid crystals, light either passes through or is blocked, creating the images we see on the screen5.

TN (Twisted Nematic) Displays

How Liquid Crystals Work in TN LCDs

In TN displays, liquid crystals are arranged in a twisted helical structure. When no voltage is applied, the crystals twist to align with the polarizers, allowing light to pass through. When voltage is applied, the crystals untwist, blocking light and creating dark pixels. This simple mechanism makes TN panels fast and cost-effective5.

Advantages of TN LCDs

1. Fast Response Time: TN panels have a response time as low as 1ms, making them ideal for fast-paced applications like gaming.
2. Low Cost: TN technology is mature and inexpensive to produce.
3. High Refresh Rates: TN panels support high refresh rates (up to 240Hz), which is beneficial for competitive gaming48.

Disadvantages of TN LCDs

1. Poor Viewing Angles: TN panels suffer from color shifting and contrast loss when viewed from angles other than straight on.
2. Limited Color Accuracy: TN displays typically cover only 6-bit color depth, resulting in less vibrant and accurate colors compared to IPS.
3. Lower Contrast Ratios: TN panels struggle to produce deep blacks, leading to inferior contrast48.

TN Display Applications

• Gaming Monitors: Due to their fast response times and high refresh rates.
• Budget-Friendly Devices: Used in entry-level laptops and monitors.
• Industrial Equipment: Where cost and speed are prioritized over color accuracy8.

IPS (In-Plane Switching) Displays

How Liquid Crystals Work in IPS LCDs

In IPS displays, liquid crystals are aligned parallel to the glass substrates. When voltage is applied, the crystals rotate horizontally within the plane, allowing precise control over light transmission. This design results in better color consistency and wider viewing angles5.

Advantages of IPS LCDs

1. Superior Color Accuracy: IPS panels support 8-bit or even 10-bit color depth, producing more vibrant and accurate colors.
2. Wide Viewing Angles: Colors remain consistent even when viewed from extreme angles (up to 178°).
3. Better Contrast and Brightness: IPS displays offer higher contrast ratios and better brightness levels, making them suitable for professional work47.

Disadvantages of IPS LCDs

1. Slower Response Times: IPS panels typically have response times of 4ms or higher, which may not be ideal for competitive gaming.
2. Higher Cost: IPS technology is more expensive to produce than TN.
3. Potential for Backlight Bleed: IPS panels can suffer from backlight bleed, which affects image quality in dark scenes47.

IPS Display Applications

• Professional Monitors: Used in graphic design, photo editing, and video production due to their color accuracy.
• High-End Consumer Electronics: Found in premium smartphones, tablets, and laptops.
• Medical Imaging: Where color precision and viewing angles are critical7.

TN vs. IPS: A Detailed Comparison

1. Display Quality

• TN: Offers fast response times but suffers from poor color accuracy and narrow viewing angles.
• IPS: Provides superior color accuracy and wide viewing angles but has slower response times48.

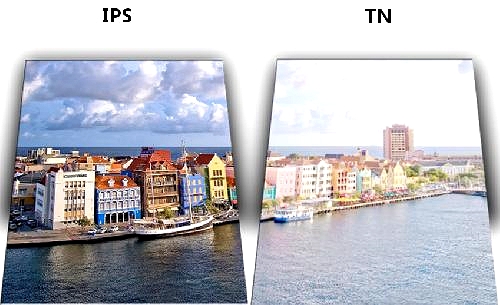

2. Viewing Angles

• TN: Colors and contrast degrade significantly when viewed from angles other than straight on.
• IPS: Maintains consistent color and contrast across wide viewing angles (up to 178°)47.

3. Response Time and Refresh Rates

• TN: Ideal for gaming with response times as low as 1ms and refresh rates up to 240Hz.
• IPS: Better suited for professional work, with response times typically around 4ms and refresh rates up to 165Hz48.

4. Color Accuracy

• TN: Limited to 6-bit color depth, resulting in less vibrant colors.
• IPS: Supports 8-bit or 10-bit color depth, offering more accurate and vibrant colors47.

5. Cost

• TN: More affordable due to mature manufacturing processes.
• IPS: More expensive, especially for high-end models with advanced features8.

Conclusion

Both TN and IPS displays have their unique advantages and are suited to different applications. TN panels are ideal for gamers and budget-conscious users due to their fast response times and low cost. On the other hand, IPS panels excel in professional settings where color accuracy and wide viewing angles are critical. By understanding the strengths and limitations of each technology, you can choose the display that best meets your needs.

For more information on TN and IPS displays, or to explore custom display solutions, feel free to contact us or visit our website. We’re here to help you find the perfect display for your project!
