Segment LCD screens partition into segments to show simple characters/symbols. They’re low – res, traditional yet popular. Advantages include lowest unit price ($0.45 – $16/piece), lowest tooling fee, low energy use. Nematic fluid types exist, and color silk tech adds color sans extra power.
Segment LCD screens, as the name implies, belong to a type of LCD (liquid crystal display) technology utilized in electronic devices. They display characters, symbols, or numbers by partitioning the screen into distinct segments, with each segment corresponding to a particular part of a character or symbol, like lines, curves, or dots.
In comparison to dot matrix LCD screens, segment LCD screens possess a lower resolution. Their main application lies in presenting simple characters or symbols, such as numbers or basic icons.
Even though segment displays represent a traditional technology, they remain one of the most favored ones, and people continue to incorporate these segment LCD screens into new products. After all, they are unable to display the full range of colors that can be seen on TFT or OLED displays like those on cell phones and tablets.
Belows are crucial and critical reasons and advantages for why:
Lowest Unit Price
The unit price of a segment display can range from less than $0.45/piece to $16/piece depending on quantity, size of glass, and other variables.
Lowest Tooling Fee
The tooling fee for a custom display is the lowest of all the technologies and allows the customer to receive a LCD that is manufactured to the exact dimensions requested, including custom icons and segments.
Focus LCDs offers a one-time NRE (Non-recurring engineering) or tooling fee. This includes all design, technical support, and samples. A PDF showing an overview of our tooling process can be found by clicking here: Custom LCD flowchart
Low Energy Consumption
Segment displays require less power than other display technology such as TFT, OLED.
There are Nematic Fluid Types, such as TN segment codes, HTN segment codes, STN segment codes, VATN segment codes, and etc.. Thanks to color silk display technology, one can now plus colors to one’s custom segmented screen without increasing power consumption.
| No. | Specification | Details |
| 1 | LCD Size | Custom Display Module |
| 2 | Display Mode | Segment LCD Display |
| 3 | Operating Voltage | 3.3V/5V/customized |
| 4 | Viewing Direction | 6:00 or 12:00 |
| 5 | Active Area | 10.8(H) × 21.7(V) mm |
| 6 | Module Size | Custom Display Module |
| 7 | Segment | 7-18 Segment Display |
| 8 | Connector | PIN or FPC or ZEBRA |
| 9 | Drive lc | HT1621/HT1622 |
| 10 | Backlight | Black/none |
| 11 | Operating Temp. | -20℃~ +70℃ |
| 12 | Storage Temp. | -30℃~+80℃ |
| 13 | Weight | 3-8g |
| 14 | Connect PIN | 16 |
| 15 | Application | medical dashboard |

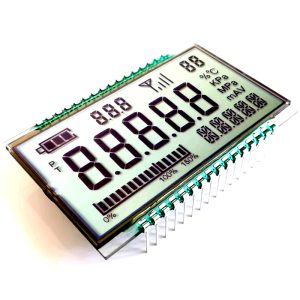

Click to view full image
The color LCD Digital Segment Screen is an ideal display solution for a wide range o
applications. From medical devices to smart home devices and everything in between.
This module offers the perfect balance of size, high contrast, wide viewing angle, and lowwst power consumption.
Some common applications include:
Our company is a national high-tech enterprise specializing in the research and development, production and sales of liquid crystal display devices. The company was established in 2012, and its products include LCD monochrome display screens, TFT color screens, OLED display screens and modules, etc. It has a full set of production and experimental equipment such as LCD manufacturing, COB bonding, COG bonding, TAB hot pressing, SMT high and low temperature test box, vibration meter, etc., which can fully realize the design, production and quality control of display modules.
Since its establishment in 2012, the company has accumulated extensive experience in the LCD display device industry.
The company has advanced production facilities in Shenzhen and Yangjiang, equipped with comprehensive production and testing equipment to ensure efficient production and quality control.
With a team of 30 R&D personnel focused on new product development and technological innovation, ensuring technological leadership and market competitiveness.
Offering OEM and ODM customization services, providing personalized solutions based on customer needs to meet different market demands.
Strictly controlling every phase of the production process to ensure high-quality and consistent products, earning customer trust.
