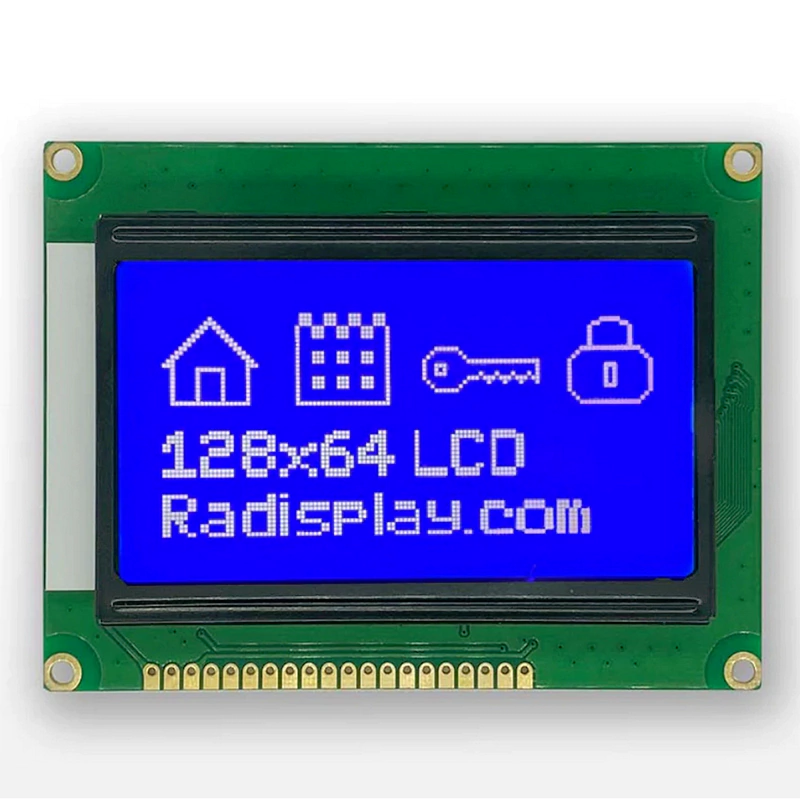

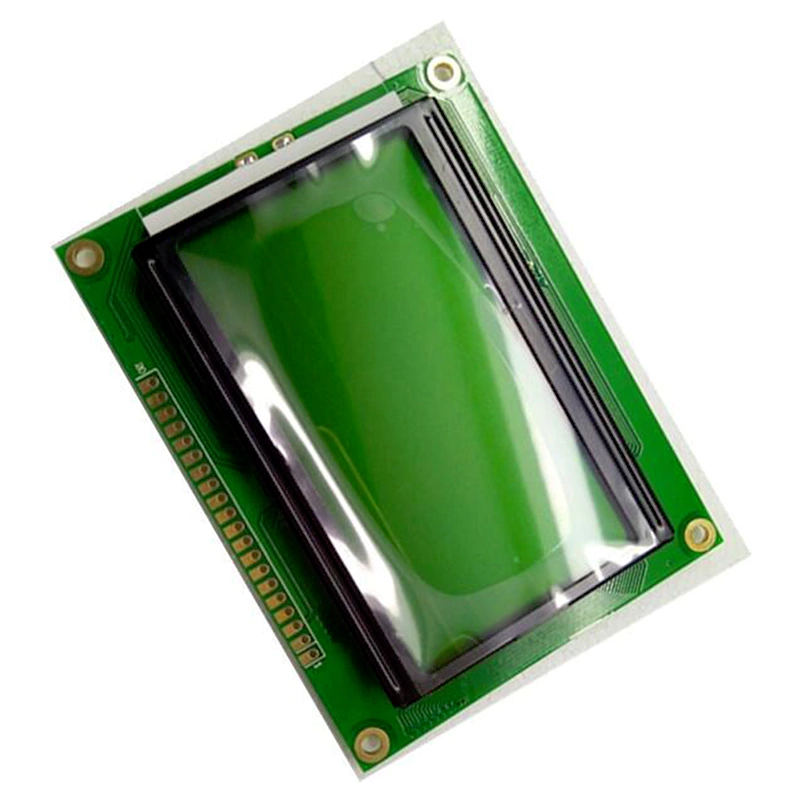

Gray FSTN black and white 128*64 LCD display graphic screen lcd panel

Structure and Components
Liquid Crystal Display (LCD) Panel: At the heart of the module is the LCD panel itself. This consists of a thin layer of liquid crystal material sandwiched between two transparent electrodes and two polarizing filters. The liquid crystal molecules can change their orientation in response to an applied electric field, thereby modulating the passage of light through the panel. This is the fundamental principle by which the LCD panel controls the intensity and color of light to create images.

Backlight Unit
To make the display visible, a backlight unit is essential. It provides a source of light that shines through the LCD panel. Common types of backlights include cold cathode fluorescent lamps (CCFL) and light-emitting diodes (LED). LED backlights have become increasingly popular due to their better energy efficiency, higher brightness, and longer lifespan.
Controller IC: The controller integrated circuit (IC) is responsible for managing the operation of the LCD panel. It controls the electrical signals sent to the panel, ensuring that the liquid crystal molecules are properly oriented to display the desired images and text. The controller IC also interfaces with the external device, such as a microcontroller or a computer, to receive the display data.
Connectors and Interfaces: The module is equipped with various connectors and interfaces to facilitate its connection to other components of the electronic device. These may include pin headers, flexible printed circuits (FPC), or other types of connectors, depending on the specific design and application requirements.

Features and Advantages
High Resolution and Visual Quality: Graphic LCD panel modules are capable of providing high-resolution displays, allowing for sharp and clear images, text, and graphics. They offer excellent color reproduction and contrast, making them suitable for applications that require detailed and vivid visual representations, such as in smartphones, tablets, and digital cameras.
Low Power Consumption: Compared to other display technologies such as cathode ray tubes (CRT), LCD panel modules consume significantly less power. This is especially important for portable electronic devices where battery life is a critical factor. The low power consumption of LCD panels is attributed to the fact that they only require power to change the orientation of the liquid crystal molecules, rather than generating light like a CRT.

Thin and Lightweight:
The slim profile and lightweight nature of LCD panel modules make them ideal for use in thin and lightweight electronic devices. They can be easily integrated into the design of laptops, mobile phones, and other portable gadgets, without adding significant bulk or weight.
Wide Viewing Angle: Many LCD panel modules offer a wide viewing angle, which means that the display can be clearly seen from different angles without significant loss of contrast or color saturation. This is beneficial for applications where multiple users may need to view the display simultaneously, such as in public information displays or shared electronic devices.

Applications
Consumer Electronics:
LCD display graphic screen LCD panel modules are widely used in consumer electronics products such as smartphones, tablets, digital cameras, and portable gaming consoles. They provide users with high-quality visual experiences for gaming, watching videos, taking photos, and browsing the internet.
Industrial and Medical Equipment: In the industrial and medical fields, LCD panel modules are used in a variety of applications, such as industrial control panels, medical monitors, and diagnostic equipment. Their high reliability, accuracy, and durability make them suitable for use in harsh industrial environments and critical medical applications.
Automotive Industry:
LCD panels are increasingly being used in the automotive industry for dashboard displays, infotainment systems, and rear-seat entertainment. They offer enhanced visual clarity and interactivity, improving the driving experience and passenger comfort.
Advertising and Signage:
Graphic LCD panel modules are used in advertising and signage applications to display dynamic and eye-catching content. They can be found in digital billboards, store signage, and public transportation displays, providing a more engaging and effective way to communicate information to the public.

The LCD display graphic screen LCD panel module is a highly versatile and important component in modern electronics. With its high-resolution display, low power consumption, thin and lightweight design, and wide viewing angle, it has become the preferred choice for a wide range of applications in the consumer, industrial, medical, and automotive industries. As technology continues to advance, we can expect further improvements in the performance and functionality of LCD panel modules, leading to even more widespread use in the future
