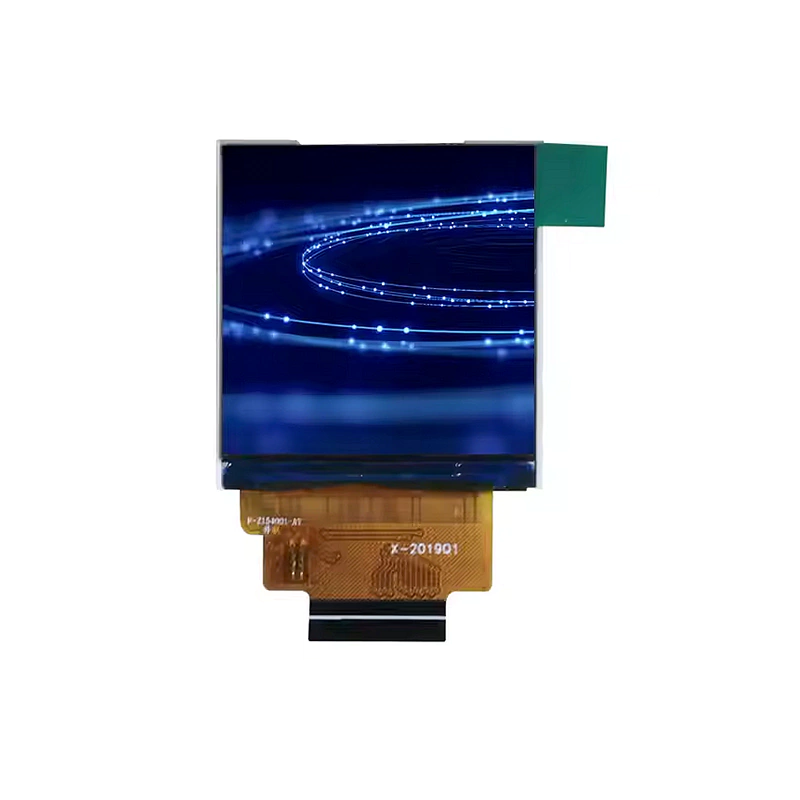

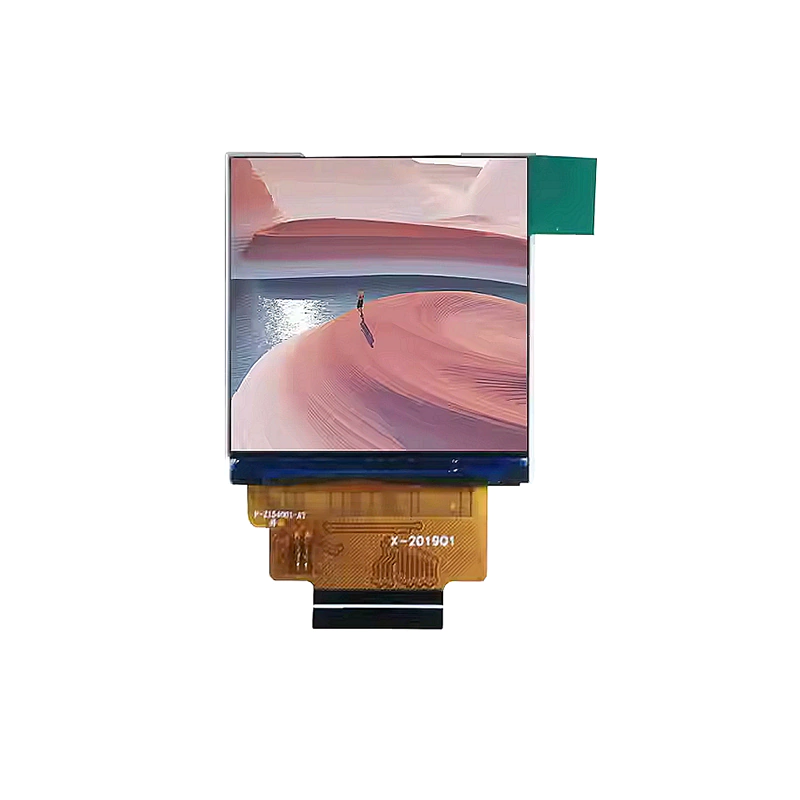

1.54 inch TFT LCD display manufactured by our factory AURORA, is a compact, diverse screen that offers a balance of size and functionality. With its small size, it will be well-suited for a variety of applications with limited space, but visual information is still crucial.
This sort of modules display is widely used in smartwatch, wearable devices, IoT(Internet of Things) devices and small handheld gadgets. Despite its small size, the 1.54 inch TFT LCD display will provide clear and vibrant images, making it suitable for displaying text, graphics, and even Copperplate Print Quality.
Some models of the 1.54 inch TFT LCD touchscreen endows an interactive dimension, allowing users to navigate menus, input data, and interact with applications directly on the screen.
Overall, the 1.54 inch TFT LCD is a versatile display option that offers compact size, clear visuals, and touchscreen functionality, making it an ideal choice for various electronic projects and applications.
| No. | Specification | Details |
| 1 | LCD Size | 1.54 inch(Diagonal) |
| 2 | Display Mode | Normally black |
| 3 | Resolution | 240(H)RGB×240(V) |
| 4 | Display Colors nos | 262K |
| 5 | Viewing Direction | ALL o’clock |
| 6 | Module Size | 33(H)×33(V)×1.4Max(D)mm |
| 7 | Color arrangement | RGB Vtertical stripe |
| 8 | Interface | 4 White SPI |
| 9 | Driver IC RAM | 240x16x240 bit |
| 10 | Luminance(cd/m2) | 220 (TYP) |
| 11 | Viewing Direction | All View |
| 12 | Backlight | 2 White LEDs in Parallel |
| 13 | Operating Temp. | -20℃~70℃ |
| 14 | Storage Temperature | -30℃~80 ℃ |
| 14 | Contrast Ratio | 170 |
Click to view full image
The TFT Screen Panel is an ideal display solution for a wide range of applications. From instrument board to home appliances and everything in between.
This module offers the perfect balance of size, high contrast, wide viewing angle.
