How to Choose the Right Segment LCD Screen Module for Industrial Devices
Introduction
In industrial applications where reliability, low power consumption, and readability are paramount, segment LCD (Liquid Crystal Display) modules have become the display technology of choice. Unlike more complex graphic displays, segment LCDs offer simplicity, durability, and cost-effectiveness – making them ideal for industrial control panels, measurement equipment, automotive dashboards, and medical devices.
At Aurora LCD, we specialize in high-quality segment LCD modules tailored for industrial applications. This comprehensive guide will help you:
✔ Understand the key advantages of segment LCDs for industrial use
✔ Learn how to select the right specifications for your application
✔ Compare segment LCDs with other display technologies
✔ Avoid common selection mistakes
✔ Discover emerging trends in segment LCD technology
By the end, you’ll be equipped to choose the perfect segment LCD module for your industrial device.
1. Why Choose Segment LCDs for Industrial Applications?
A. Unmatched Power Efficiency
- Consumes microamps of current (ideal for battery-powered devices)
- No backlight required in most ambient lighting conditions
- Static display means power only needed when changing segments
B. Extreme Environmental Durability
- Operates in -30°C to +80°C temperature ranges
- Resistant to vibration and shock (unlike fragile TFTs)
- No image degradation over time (unlike OLED burn-in)
C. Superior Readability in All Conditions
- High contrast ratios (up to 1:15)
- Wide viewing angles (6 o’clock standard)
- Sunlight readable without backlight
D. Cost-Effective Solution
- Lower production costs than graphic displays
- Simpler driver requirements reduce BOM costs
- Long lifespan (>100,000 hours) minimizes replacements
2. Key Specifications to Consider When Selecting Segment LCDs

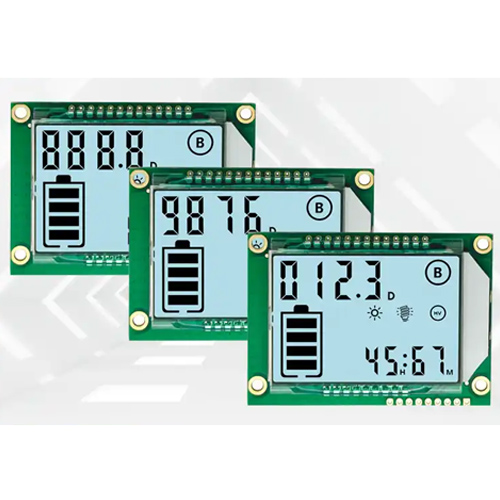

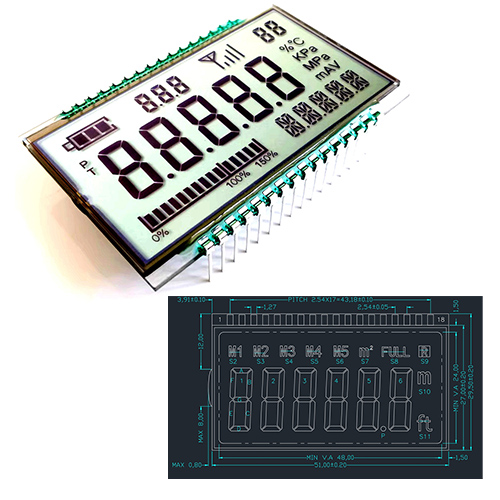

A. Display Type & Configuration
| Type | Description | Best For |
|---|---|---|
| 7-Segment | Numeric displays (0-9) | Counters, timers, meters |
| 14-Segment | Alphanumeric characters | Basic text information |

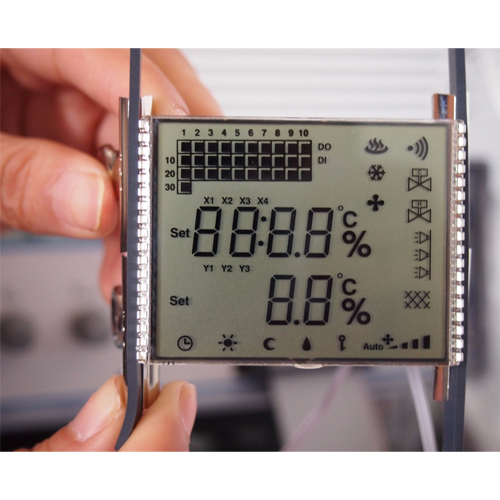

| Custom Segments | Application-specific icons | Status indicators, symbols |
B. Operating Voltage & Power Requirements
- Standard voltage ranges: 3V, 5V, or 9V options
- Low-voltage variants available for battery applications
- Power consumption: Typically <50μA/cm²
C. Environmental Specifications
| Parameter | Industrial Grade | Commercial Grade |
|---|---|---|
| Temperature Range | -30°C to +80°C | 0°C to +50°C |
| Humidity | 85% RH non-condensing | 60% RH |
| Shock Resistance | 50G acceleration | 20G acceleration |
D. Optical Performance
- Viewing angle: 6 o’clock standard (12 o’clock available)
- Contrast ratio: Minimum 1:8 for industrial use
- Polarizer options: Transflective, transmissive, or reflective
E. Interface & Driving Method
- 1/2, 1/3, or 1/4 duty cycle options
- Static drive for simple displays
- Built-in controller options available
3. Segment LCD vs. Other Display Technologies
Comparison Table
| Feature | Segment LCD | TFT LCD | OLED | Dot Matrix |
|---|---|---|---|---|
| Power Use | Ultra-low | Medium | High | Medium |
| Readability | Excellent | Good | Excellent | Fair |
| Temperature Range | Wide | Limited | Limited | Moderate |
| Cost | Low | Medium | High | Medium |
| Lifespan | 100K+ hrs | 50K hrs | 30K hrs | 80K hrs |
| Customization | High | Medium | Low | Medium |
When to Choose Segment LCDs Over Alternatives
✔ Battery-powered field devices (ultra-low power)
✔ Harsh industrial environments (wide temp range)
✔ Simple numeric/alphanumeric display needs
✔ Cost-sensitive high-volume applications
4. Common Industrial Applications
A. Process Control & Automation
- PLC interfaces
- Pump/valve status displays
- Temperature controllers
B. Test & Measurement Equipment
- Multimeters
- Oscilloscopes
- Calibration devices
C. Automotive & Transportation
- Dashboard instrumentation
- EV battery monitors
- Fleet management systems
D. Medical Devices
- Patient monitors
- Diagnostic equipment
- Portable medical devices
5. How to Avoid Common Selection Mistakes
Mistake #1: Ignoring Viewing Angle Requirements
✅ Solution: Specify 6 or 12 o’clock viewing based on device orientation
Mistake #2: Underestimating Temperature Needs
✅ Solution: Always choose industrial-grade (-30°C to +80°C) for reliability
Mistake #3: Overlooking Optical Bonding
✅ Solution: Use bonded displays in high-vibration environments
Mistake #4: Choosing Wrong Drive Method
✅ Solution: Consult with display engineers during selection
6. Emerging Trends in Segment LCD Technology
A. Advanced Optical Materials
- Improved contrast ratios (up to 1:20)
- Wider temperature ranges (-40°C to +90°C)

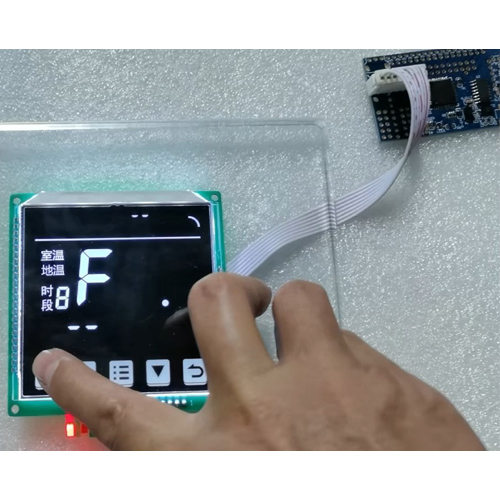

B. Integrated Touch Options
- Resistive touch segments for basic interactivity
C. Hybrid Display Solutions
- Combining segment and graphic areas in one display
D. Smart Controller Integration
- Built-in drivers reducing external components
7. Why Choose Aurora LCD for Your Industrial Segment LCD Needs?
✔ 20+ Years Industrial Display Experience
✔ Custom Solutions from Prototype to Mass Production
✔ ISO 9001 Certified Manufacturing
✔ Competitive Pricing & Fast Lead Times
Conclusion
Selecting the right segment LCD module for industrial applications requires careful consideration of environmental conditions, power requirements, viewing angles, and customization needs. By following this guide, you can ensure optimal performance and reliability for your industrial devices.
Ready to find your perfect segment LCD solution?
📞 Contact Aurora LCD’s display experts today!
FAQs
Q1. What’s the minimum order quantity for custom segment LCDs?
A: MOQ starts at 1,000 units with flexible options.
Q2. How long do segment LCDs typically last?
A: 100,000+ hours (10+ years) in normal conditions.
Q3. Can segment LCDs work in sunlight?
A: Yes, especially transflective types with no backlight needed.
Q4. What’s the lead time for custom segment LCDs?
A: 6-8 weeks for production after final approval.
Q5. Do you provide optical bonding services?
A: Yes, we offer full optical bonding for harsh environments.
